品牌：藍江
材料：尼龍6
顏色：默認黑色，可選灰白色
阻燃：UL94V-2(可定制V0)
溫度：-40°C-105°C
環保：符合ROHS2.0標準
性能：快速連接軟管，抗拉力強，安裝高效便捷
產品選型參數表/M

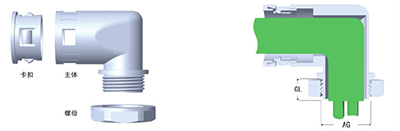

藍江產品型號 | 螺紋規格 | 建議開孔 | 適配軟管 | 螺紋直徑 | 螺紋長度 | 包裝 |
Product model | Thread size | Hole size | Adapt hose | Thread diameter | Thread length | Packing |
PN. | Metric | φ mm | φ mm | AG mm | GL mm | pcs |
RW-M12-AD10.0 | M12×1.5 | 12 | AD10 | 12 | 10 | 50 |
RW-M12-AD13.0 | M12×1.5 | 12 | AD13 | 12 | 10 | 50 |
RW-M16-AD13.0 | M16×1.5 | 16 | AD13 | 16 | 10 | 50 |
RW-M16-AD15.8 | M16×1.5 | 16 | AD15.8 | 16 | 10 | 50 |
RW-M18-AD13.0 | M18×1.5 | 18 | AD13 | 16 | 10 | 50 |
RW-M18-AD15.8 | M18×1.5 | 18 | AD15.8 | 16 | 12 | 50 |
RW-M20-AD13.0 | M20×1.5 | 20 | AD13 | 20 | 10 | 50 |
RW-M20-AD15.8 | M20×1.5 | 20 | AD15.8 | 20 | 12 | 20 |
RW-M20-AD18.5 | M20×1.5 | 20 | AD18.5 | 20 | 12 | 20 |
RW-M20-AD21.2 | M20×1.5 | 20 | AD21.2 | 20 | 13 | 10 |
RW-M24-AD21.2 | M24×1.5 | 24 | AD21.2 | 22 | 13 | 10 |
RW-M25-AD21.2 | M25×1.5 | 25 | AD21.2 | 25 | 13 | 50 |
RW-M25-AD25.0 | M25×1.5 | 25 | AD25 | 25 | 13 | 50 |
RW-M25-AD28.5 | M25×1.5 | 25 | AD28.5 | 25 | 13 | 50 |
RW-M27-AD28.5 | M27×1.5 | 27 | AD28.5 | 25 | 13 | 50 |
RW-M30-AD28.5 | M30×1.5/2 | 30 | AD28.5 | 25 | 13 | 50 |
RW-M32-AD34.5 | M32×1.5 | 32 | AD34.5 | 32 | 14 | 50 |
RW-M36-AD34.5 | M36×1.5/2 | 36 | AD34.5 | 32 | 14 | 50 |
RW-M40-AD34.5 | M40×1.5 | 40 | AD34.5 | 40 | 14 | 20 |
RW-M40-AD42.5 | M40×1.5 | 40 | AD42.5 | 40 | 15 | 20 |
RW-M48-AD42.5 | M48×1.5/2 | 48 | AD42.5 | 40 | 15 | 10 |
RW-M50-AD54.5 | M50×1.5 | 50 | AD54.5 | 50 | 16 | 10 |
RW-M60-AD54.5 | M60×1.5 | 60 | AD54.5 | 63 | 16 | 10 |
RW-M63-AD54.5 | M63×1.5 | 63 | AD54.5 | 63 | 16 | 10 |
產品選型參數表/PG/G(PF)
藍江產品型號 | 螺紋規格 | 建議開孔 | 適配軟管 | 螺紋直徑 | 螺紋長度 | 包裝 |
Product model | Thread size | Hole size | Adapt hose | Thread diameter | Thread length | Packing |
PN. | Metric | φ mm | φ mm | AG mm | GL mm | pcs |
RW-PG7-AD10.0 | PG7 | 12.5 | AD10 | 12.5 | 10 | 50 |
RW-PG9-AD13.0 | PG9 | 15.2 | AD13 | 15.2 | 10 | 50 |
RW-PG11-AD15.8 | PG11 | 18.6 | AD15.8 | 18.6 | 12 | 50 |
RW-PG13.5-AD18.5 | PG13.5 | 20.4 | AD18.5 | 20.4 | 12 | 50 |
RW-PG16-AD21.2 | PG16 | 22.5 | AD21.2 | 22.5 | 13 | 50 |
RW-PG21-AD28.5 | PG21 | 28.3 | AD28.5 | 28.3 | 13 | 50 |
RW-PG29-AD34.5 | PG29 | 37 | AD34.5 | 37 | 14 | 20 |
RW-PG36-AD42.5 | PG36 | 47 | AD42.5 | 47 | 15 | 10 |
RW-PG42-AD54.5 | PG42 | 54 | AD54.5 | 54 | 16 | 10 |
RW-PG48-AD54.5 | PG48 | 59.3 | AD54.5 | 59.3 | 16 | 10 |
RW-G1/4-AD10.0 | G1/4 | 13.15 | AD10 | 13.15 | 10 | 50 |
RW-G3/8-AD15.8 | G3/8 | 16.66 | AD15.8 | 16.66 | 10 | 50 |
RW-G1/2-AD15.8 | G1/2 | 20.95 | AD15.8 | 20.95 | 12 | 50 |
RW-G1/2-AD18.5 | G1/2 | 20.95 | AD18.5 | 20.95 | 12 | 50 |
RW-G1/2-AD21.2 | G1/2 | 20.95 | AD21.2 | 20.95 | 13 | 50 |
RW-G3/4-AD28.5 | G3/4 | 26.66 | AD28.5 | 26.44 | 13 | 50 |
RW-G1-AD34.5 | G1 | 33.2 | AD34.5 | 33.2 | 14 | 20 |
RW-G1-1/4-AD42.5 | G1-1/4 | 41.9 | AD42.5 | 41.9 | 15 | 10 |
RW-G1-1/2-AD42.5 | G1-1/2 | 47.8 | AD42.5 | 47.8 | 15 | 10 |
RW-G1-1/2-AD42.5 | G1-1/2 | 47.8 | AD42.5 | 47.8 | 16 | 10 |
RW-G2-AD54.5 | G2 | 59.6 | AD54.5 | 59.6 | 16 | 10 |
